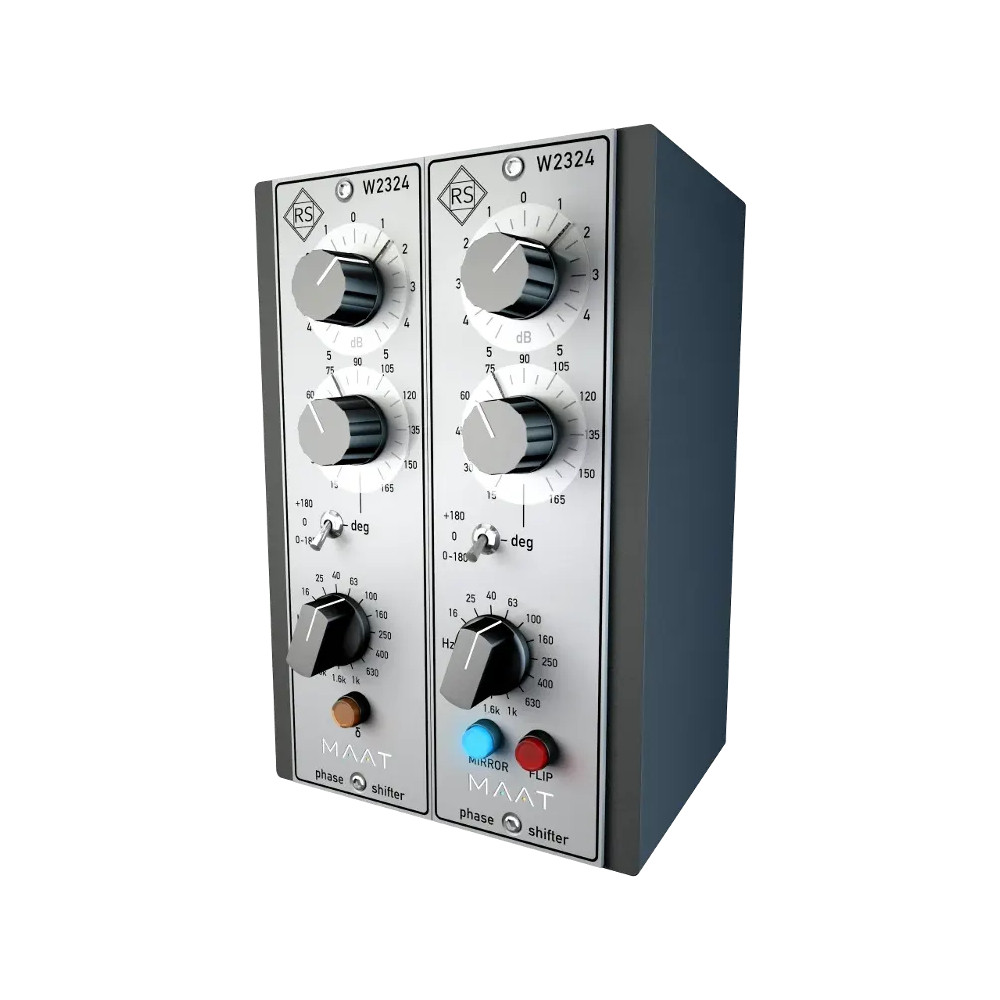

MAAT RSPhaseShifter

Creating a very high fidelity, phase shifted version of the input, RSPhaseShifter provides a fast, convenient and musical means of aligning individual mix elements for best subjective result. RSPhaseShifter is great for any situation where you need to creatively control tonality, power spectrum and harmonic content through phase manipulation. Post–production, stem mastering, outboard gear compensation, film re–recording, “live” production, sound reinforcement, along with content creation for gaming and VR all benefit from having RSPhaseShifter on hand.

Old Skool Values

RSPhaseShifter was created in conjunction with Roger Schult/German Audio Lab, and is a painstaking, 64 bit digital realization of Schult’s trusted Phase Shifter W2324 analog phase rotator hardware. When multiple sources compete rather than complement, RSPhaseShifter should be your choice for a fast, intuitive, easy to use and effective remedy.

Simple Yet Versatile

RSPhaseShifter: a mixer’s secret weapon, both live and in the studio…Whether it’s mix sessions with multiple tracks of one instrument, or alignment of spots and overheads, RSPhaseShifter makes quick work of cancellation issues, bringing back the richness and impact you cannot get from basic delay compensation. Match and optimize the time delay or phase response of a subwoofer in a surround monitoring environment, address fold–down issues or create thick, ultra–wide sounds and phase sweeps by deliberately manipulating phase of one side of a stereo track.

Purpose–built

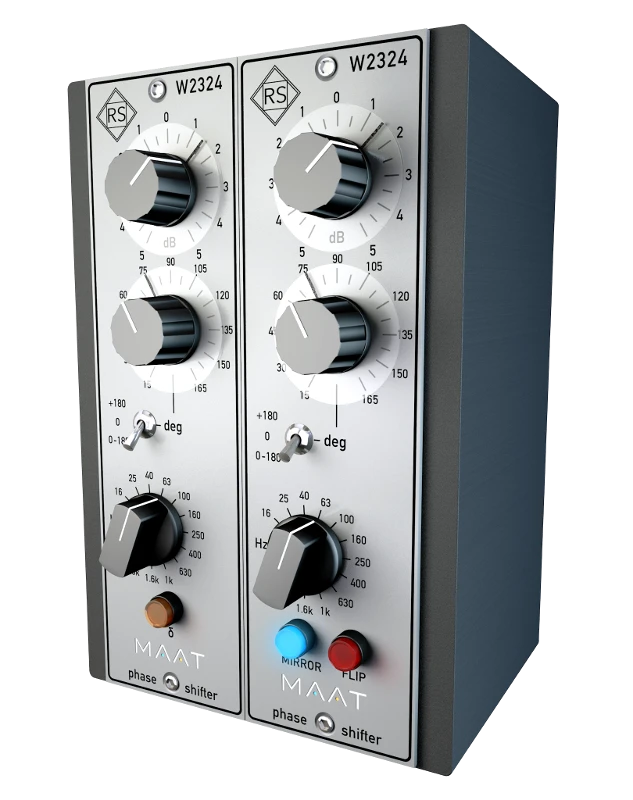

RSPhaseShifter’s analog–style controls are no accident. They’re the same controls found on the tried and true Phase Shifter W2324 hardware, only better. With no added noise, double precision internal processing plus support for AAX and 8x sample rates, RSPhaseShifter is a cost effective addition to any engineer’s toolkit.

What’s Your Headache?

For most applications, it makes sense to use RSPhaseShifter on just one channel, rather than on both stereo channels. A common example would be when a stereo pair of ambiance mics suffer from slightly different distances to a localized source. Additional uses include:

1. You have a DI’d bass track which sounds dry and lifeless. You drop that track into a project so you can re–amp it, and dial up a great re–amped sound. When you try to blend the DI track with the re–amped track, it sounds…awful! Just grab RSPhaseShifter, insert it into the DI’d track, and start off with a low frequency setting. Sweep the phase angle control and fine tune the frequency and…Bang! Suddenly, it sound awesome.

2. Another scenario would be you have a set of two distorted guitar tracks recorded with different guitars or amps but playing the same riff. They sound nasty because both are modeling–based guitar amp simulations. Just insert the stereo version of the RSPhaseShifter into one of those pair of tracks and play around in Mirror mode, so that both sides of your processing track are ganged. Within seconds, you will find a sweet spot where both guitars blend perfectly, because by sweeping through the phase angle control, you’re applying very complex comb filters which you could not create with other EQ.

3. Sometimes mixes or stems come in with a stereo panorama that’s simply too wide. The resulting mix is way dense and requires more careful crafting of the soundstage, so you start to narrow individual elements. But wait, as the elements becomes narrower, their timbre suffers…RSPhaseShifter to the rescue! Bring back the grunt and meat while folding down toward mono.

4. A common situation is you have closely spaced, multi–mic’ed sources, like a snare with top and bottom mics, some instrument with two mics, or an acoustic guitar with a mic and a piezo pickup. Just play around with the RSPhaseShifter on one of the feeds, preferably the one which is closest to the source, such as a piezo feed, and find the sweet spot by feel.

5. Yet another would be you’ve made a great acoustic stereo recording and have used supporting microphones, such as room, spot or far hall placements. To meld these into your main stereo pair, take your mains as the phase reference, and align one supporting mic after the other with the mains. This is easiest if your supporting sources are panned center and approximately the same level during phase alignment. Afterwards, you can set gain and panning back to taste.

6. Acoustical issues are often an annoyance at low frequencies. RSPhaseShifter works to…
• Minimize the influence of standing waves or room modes for a loudspeaker setup in conjunction with one or more subwoofers.
• Reduce the acoustical energy caused by low frequency cancellation in live sound applications.
• Acoustically optimize the sound field in studio and live sound environments.

Better By Design

As with all Roger Schult by MAAT products, the RSPhaseShifter is hand crafted and precision engineered in California by way of Germany. This is an explicit digital recreation of the analog W2324 topology, not a modeling or simulation algorithm. We copied the functionality of the original hardware without analog’s shortcomings. This tool´s value is more about what it does technically, so we left out stuff like fake transformer color, hum or Johnson Noise. There are lots of colorful plug–ins, we simply provide convenient access to the useful functionality along with a classic API Lunchbox look.

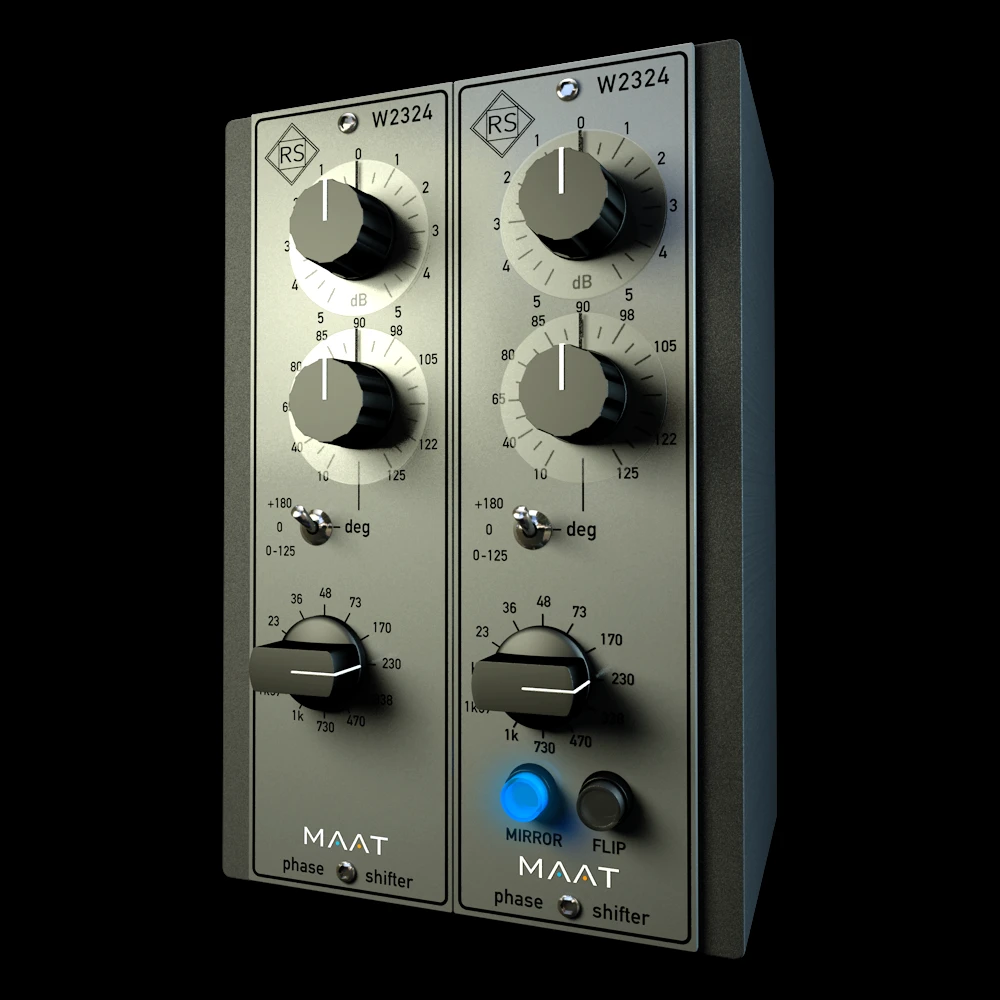

The original W2324 analog degree scale is highly non–linear, due to issues with analog circuitry. The original also has ten tick marks, from 10 to 125°. Freed from the limitations of an analog implementation, we have moved to a true, linear scale and extended the range slightly, something only possible in the digital domain. RSPhaseShifter’s eleven tick marks, in 15° steps, start at 15 and go to 180°; 15; 30; 45; 60; 75; 90; 105; 120; 135; 150; 180°

Features

• Realtime adjustment of phase angle, resonant frequency, gain
• MIRROR and FLIP modes speed stereo setting selection
• ? (DELTA) mode for modifying stereo spread in an MS workflow
• All standard formats: AU, VST 2 & 3 + AAX Mac/Win
• Optimized internal 64 bit processing for highest fidelity
• Operates at all standard sample rates, from 44.1 to 384 kHz
• Low fatigue visual design
• Compact layout
• Filter gain range of -5 to + 5 dB via 41 position stepped control
• Continuously adjustable phase angle between 15° and 180°
• 3 position switch to extend phase angle from 180° to 360°
• Bypass position for quick and easy comparison with the uncorrected signal
• Stepped or continuous rotary control to select frequency range from 16 to 4 kHz
